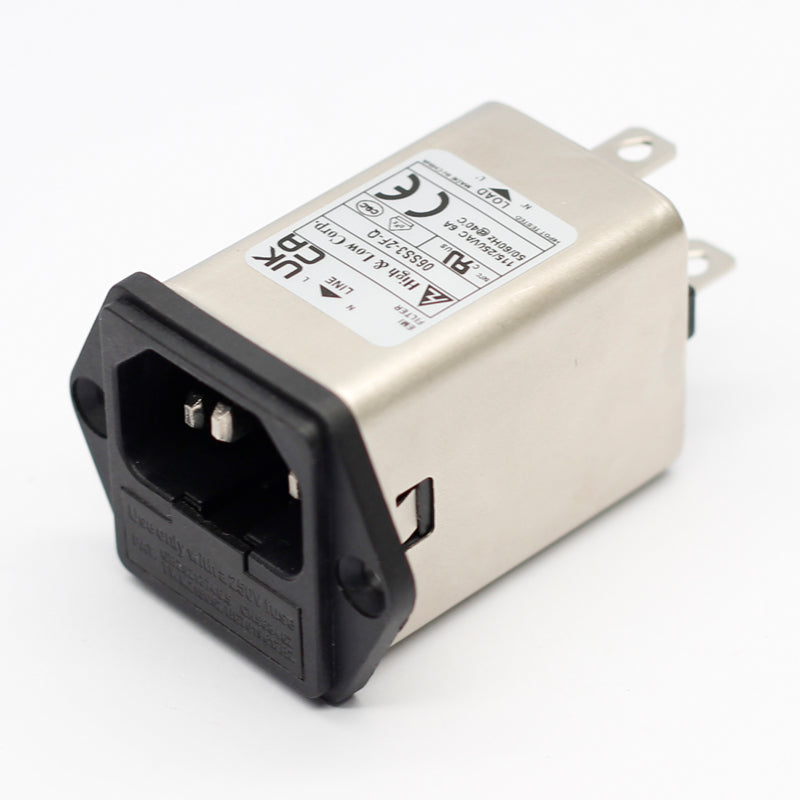

| Product Name: | Power enter Module |

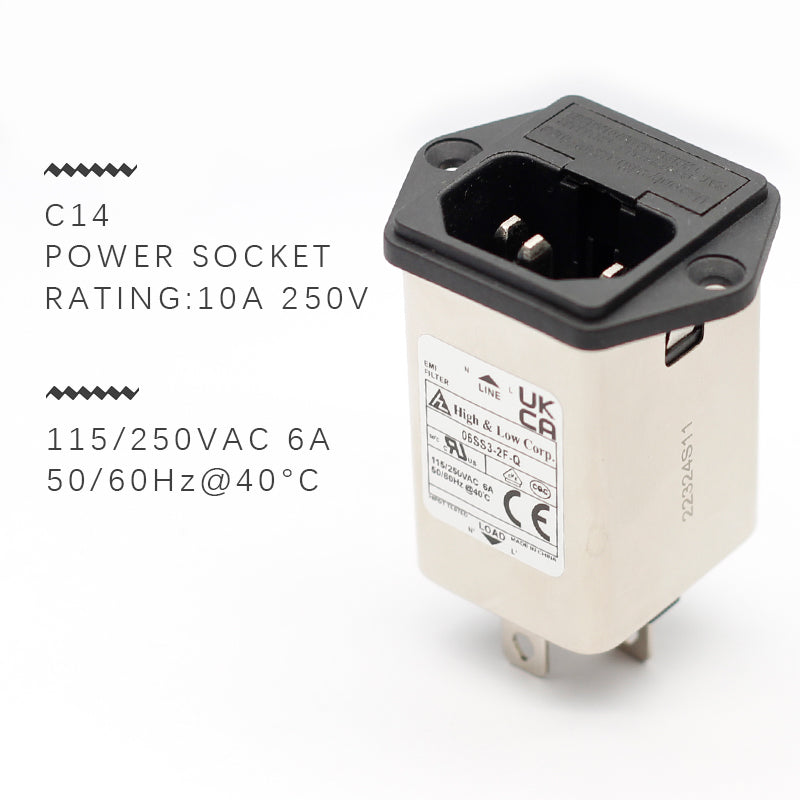

| Voltage rating: | 115~250 VAC ±10% |
| Operating frequency: | 50/60Hz |
| Current rating: | 6A @40℃ |
| AC leakage current: | 450uA |

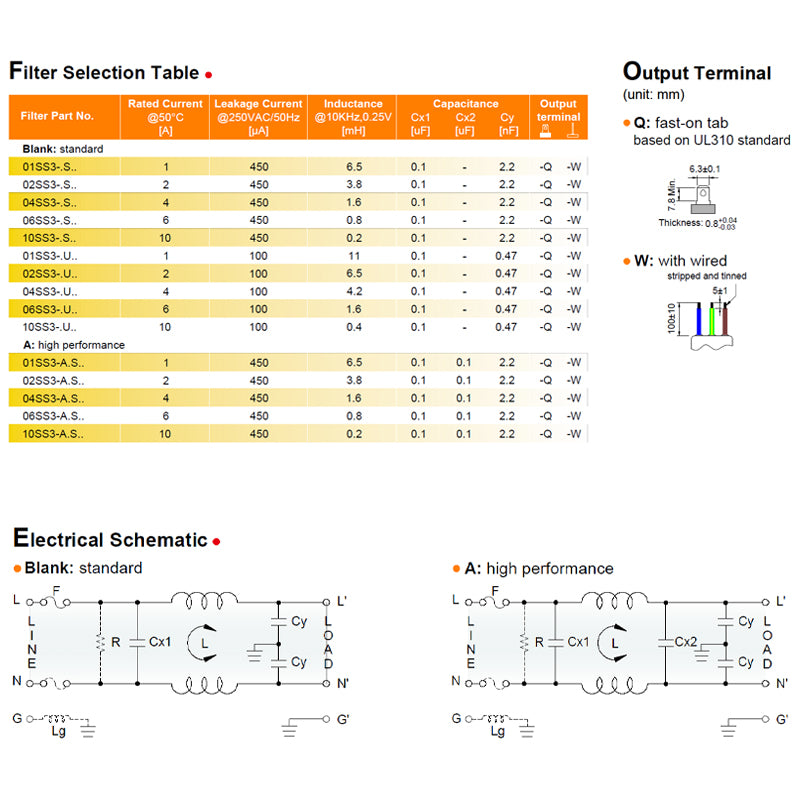

| Function Requirements | |
| Common mode inductor | 3.8 mH |
| Differential mode inductor | N/A mH |
| Grounding inductor | N/A mH |
| Common mode capacitors | 4400 pF |
| Different mode capacitors | 0.1 uF |
| Resistor | 1 M Ohm |
| Safety Requirements: | |
| Hi-pot L-L: | N/A |
| Hi-pot L-N: | 1450 VDC |
| Hi-pot L-G: | 2250 VDC |
| Hi-pot N-G: | 2250 VDC |
| IR: | 100M Ohm |
| DCR: | 2 Ohm |
| GB: | 100M Ohm Max at 25A |
| Declare | Comply with RoHS |
