1. Push button square switch-15A(4A)/250VAC,15A(4A)/24VDC

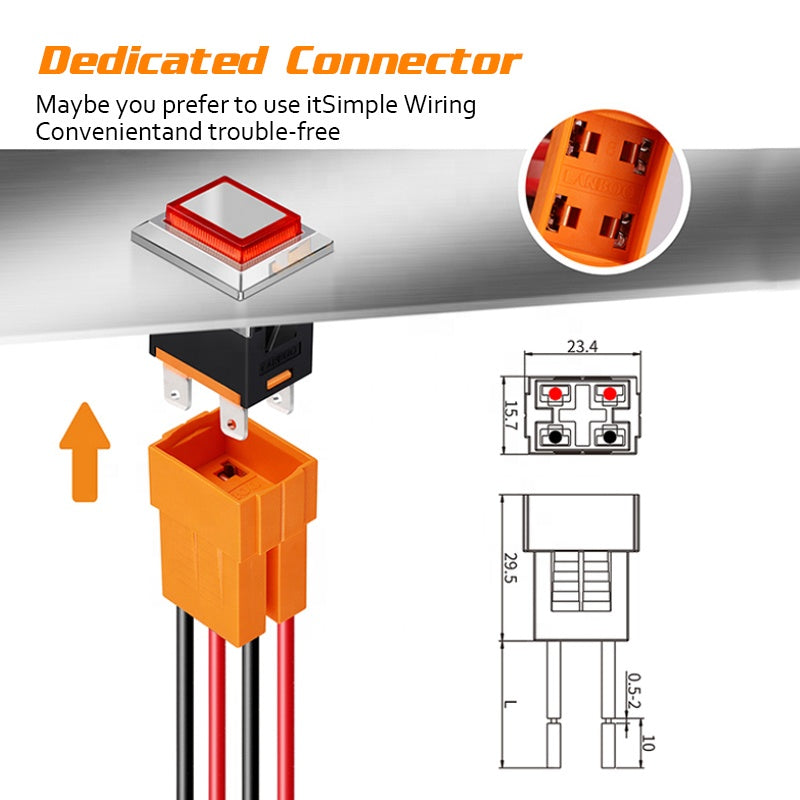

2. Optional connector,To ensure contact performance,reduce waste of labor;
3. With concave design,operation is more convenient;
4. With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5. Waterproof and dustproof,2NO function;
6. It has applied of many patents ,CCC,CE approved;
7. Patent: ZL201720076061.5,ZL201730026631.5
Model Description

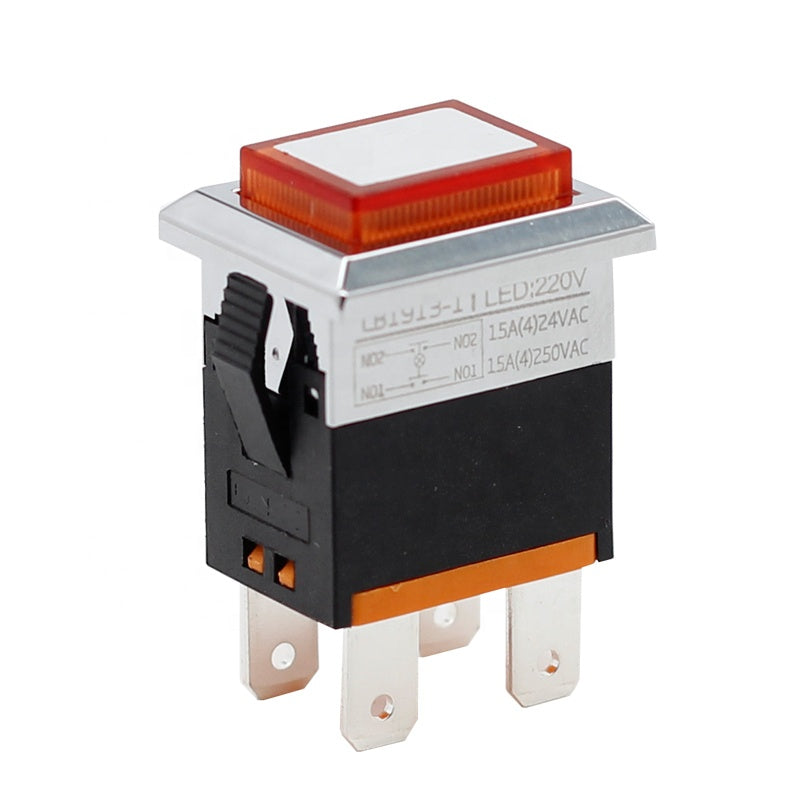

Model NO. LB-1913
Mounting diameter 19*13mm
Head shape high Head
Switch Combination 2NO
Operation type Momentary/Latching
Illuminating type Square LED
Illuminating color red,green,blue,yellow,white
Lamp voltage 2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell material PC chrome plated
The Others Parameters
Project Parameter Project Parameter
Contact type Slow moving double contact Operation Schedule Connected:1.3±0.2mm,Total:3.5±0.2mm
Contact Resistance ≤50mΩ Actuating Force about 7.5±0.8N
Insulation Resistance ≥1000mΩ Mounting panel thickness ≤3.5mm.
Dielectric Strength 3000VAC,50HZ,1min Nut torque 0.8~1.2N.m
Ambient Temperature -25℃~+55℃
Outshell/Press Key
PC chrome plated/304Stainless Steel
Protection Levels IK10 Diffuser PC
Electrical Life
Resistant load
AC220V/15A, DC24V/15A: 20,000 times;
AC220V/8A, DC24V/8A: 40,000 times;
AC220V/3A, DC24V/3A: 100,000 times
Base Seat/
Bottom Seat
PA66
Mechanical Life
Latching: 100,000 times,
Momentary: 200,000 times
Pins Contact
H65 Silver Plated
AgSnO2(RoHS)
Waterproof IP65 Spring Improved steel wire
Switch Rated Load
Project
Parameter
Reated Insulation Voltage AC250V
Fusing Current 20A
Rated Voltage DC12V DC24V DC110V AC110V AC220V
Rated Current Nonreactive Load 15A 15A - 15A 15A
Inductive Load - - 4A 4A 4A
